#Get to know your Keycard Shell

#What's in the box

• Keycard Shell
• Battery
• 2 Keycards

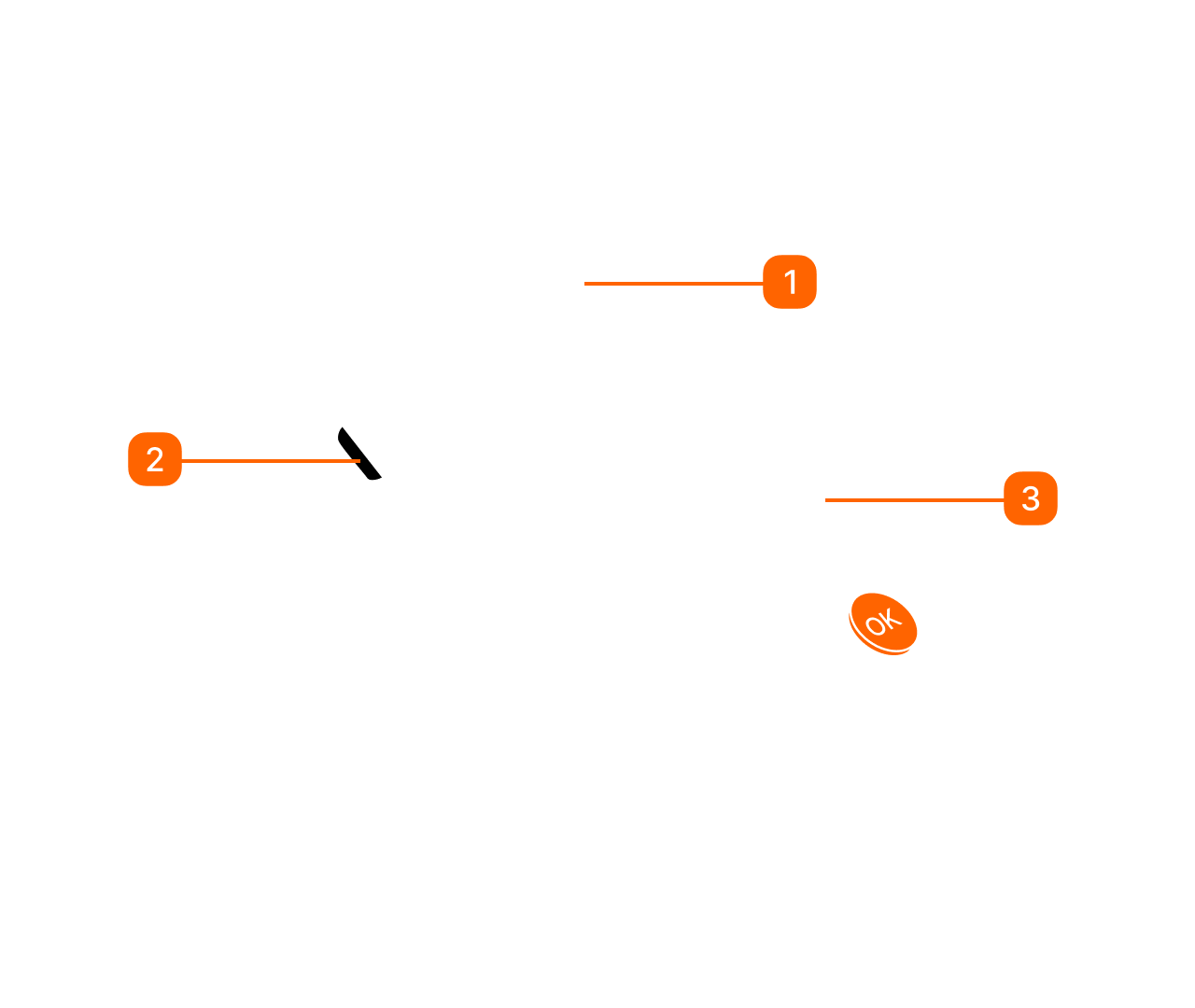

#Hardware overview

1. 1
   TFT color display: shows menus and transaction details
2. 2
   Power button: turns the device on or off
3. 3
   Numeric keypad: for input and navigation

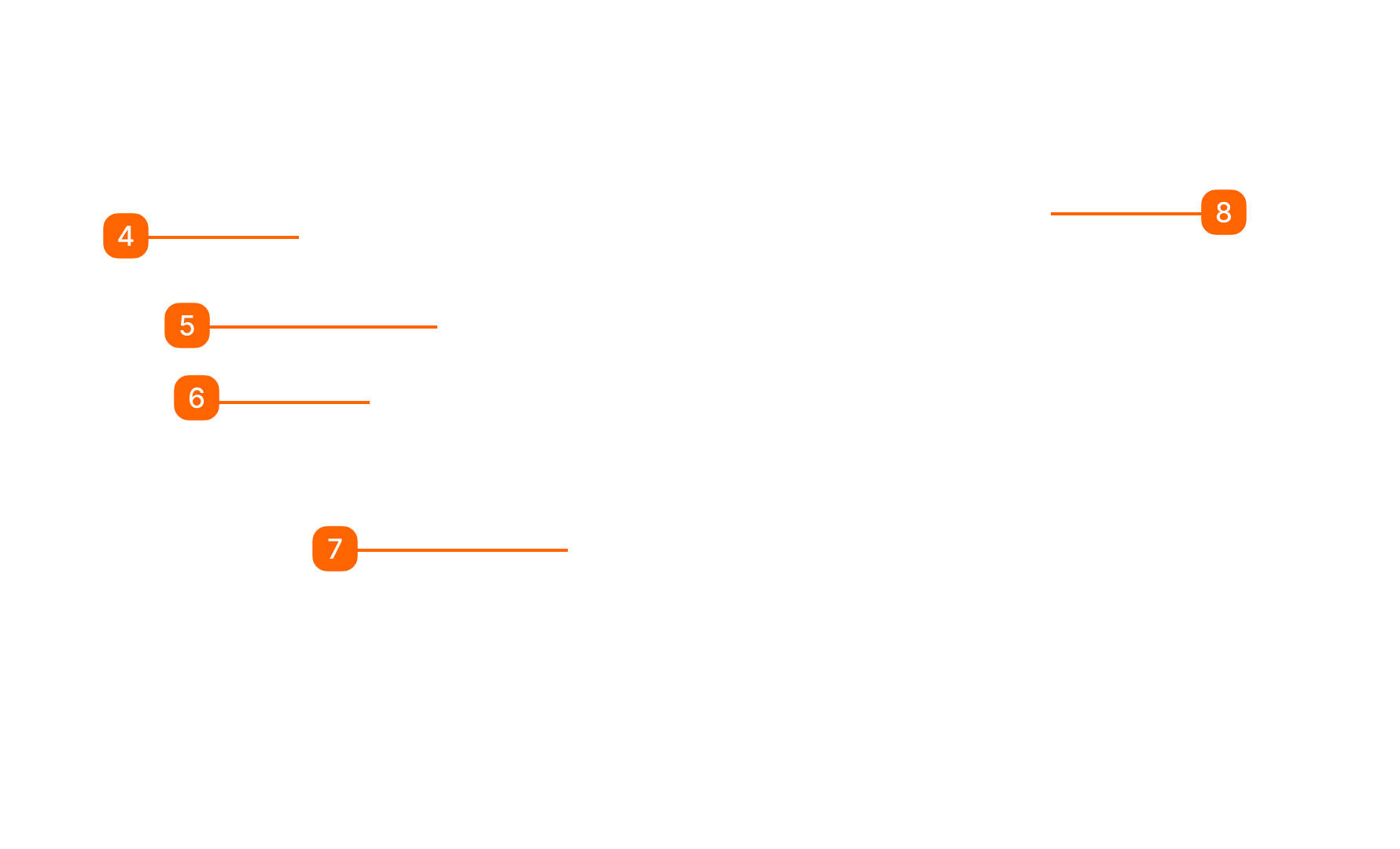

4. 4
   Camera: scans QR codes for signing and verification
5. 5
   Smart card reader: reads Keycards
6. 6
   USB-C port: used for charging and firmware updates
7. 7
   Battery slot: holds one BL-4C battery
8. 8
   Back cover: protects the battery slot and holds the Keycard in place on the reader

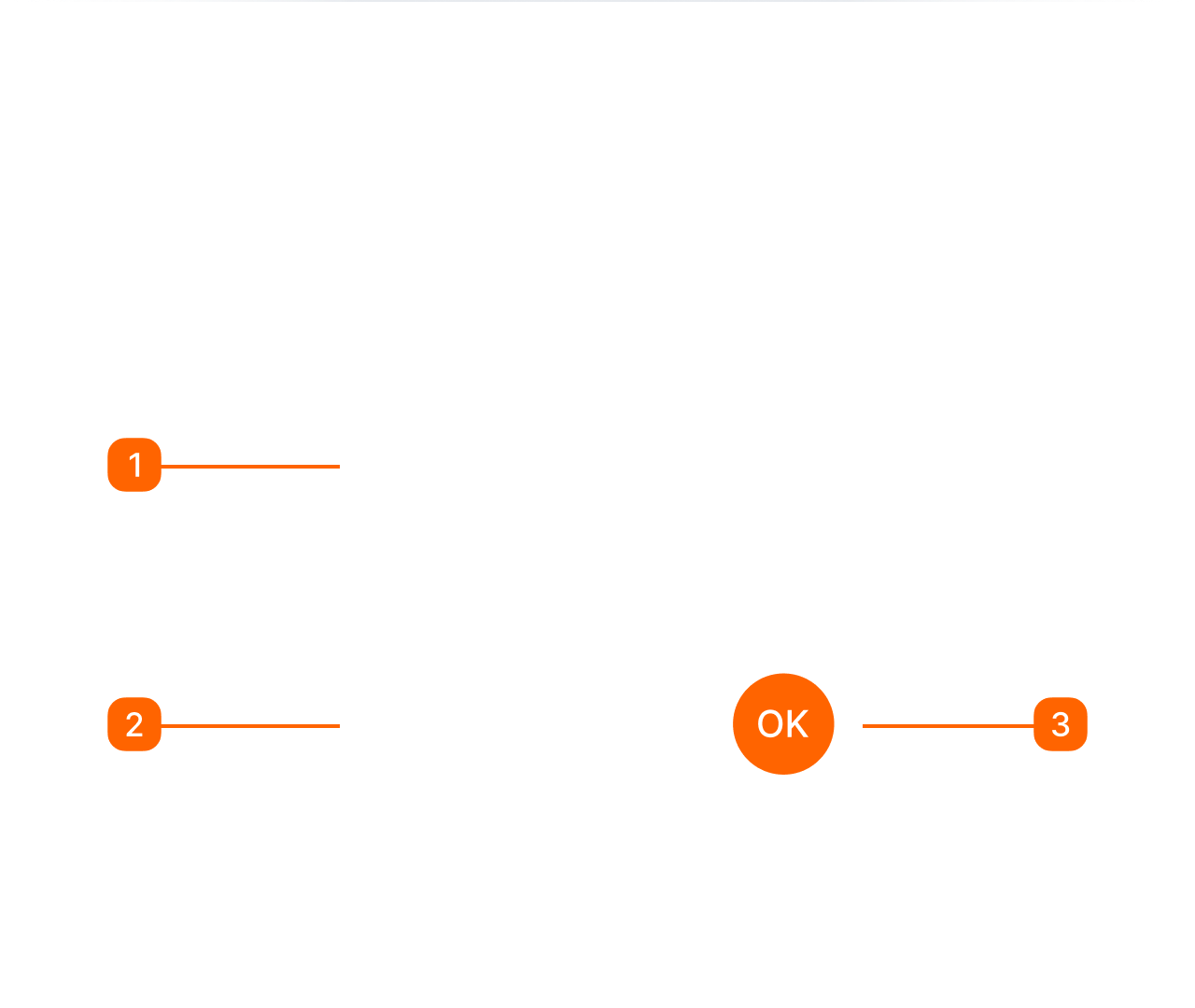

#Keypad

1. 1
   Press ▲ ▼ Up / Down and ◀ ▶ Left / Right to move through menu options on the Keycard Shell screen.
2. 2
   Press C to cancel an action or go back to the previous screen.
3. 3
   Press OK to confirm an action or select an option.

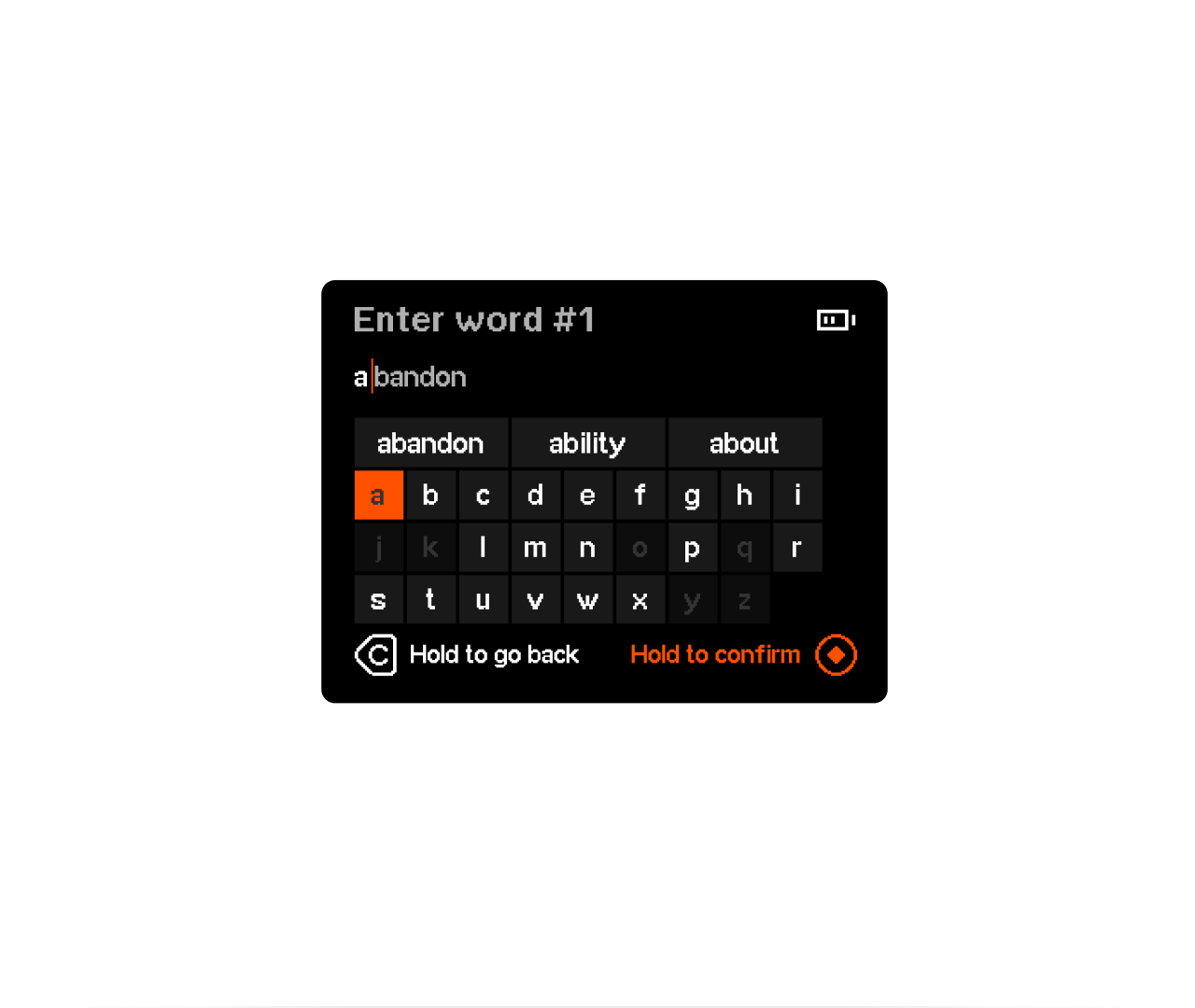

#On-screen keyboard

When you need to enter text, the Keycard Shell displays an on-screen keyboard. Use the physical keypad to move through the on-screen keyboard and select keys.

• Press ▲ ▼ Up / Down and ◀ ▶ Left / Right to move through the letters and symbols on the on-screen keyboard.
• Press C to delete the last letter.
• Press and hold C to go back to the previous word.
• Press OK to select a letter.
• Press and hold OK to confirm the word you type or select the suggested word.

#Battery

Keycard Shell uses a replaceable 800 mAh BL-4C battery, designed to last for years. The battery is commonly used for older Nokia mobile phones and various other portable electronics. You can find the battery in many electronics stores or online. Smart tip: use your card as a lever to pop out the battery from your Shell.

If the battery fails during the Keycard Shell's warranty period, please contact us at support@keycard.tech for support.

For step-by-step instructions on replacing the battery, see Replace your Keycard Shell battery.
